Is Your Furnace Not Working? Simple Steps to Diagnose Common Heating Problems

Understanding Why Your Furnace is Leaking Water

A furnace leaking water is a common but serious issue. While it's normal for high-efficiency furnaces to produce some water, any pooling around your unit signals a problem needing immediate attention.

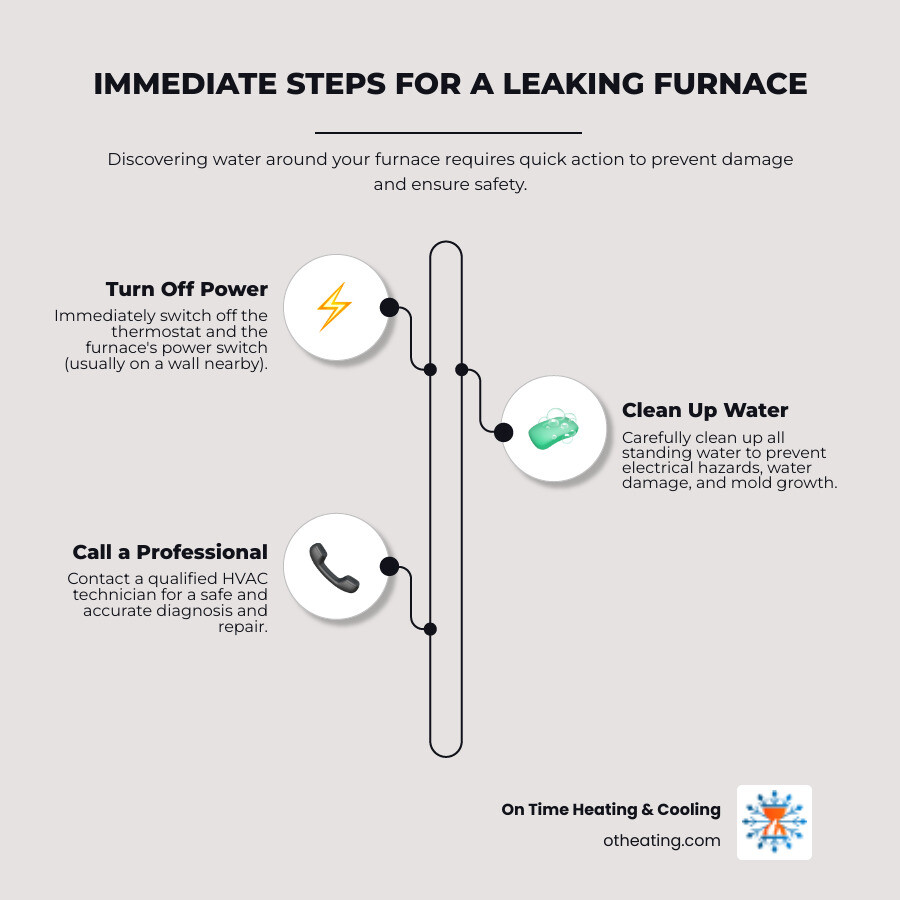

Quick Action Steps for a Leaking Furnace:

1. Turn off the furnace - Switch off the thermostat and power switch
2. Clean up standing water - Prevent electrical hazards and floor damage
3. Call a professional - Get expert diagnosis within 24 hours

The cause of the leak depends on your furnace type. High-efficiency models produce condensation that must drain away, while standard-efficiency models should not produce any water.

Common leak sources include:

• Clogged condensate drain lines
• Failed condensate pumps
• Blockable air filters causing frozen coils
• Leaking humidifiers or AC components
• Cracked heat exchangers (serious safety concern)

Water damage from furnace leaks can cost $1,300 to $6,200 to repair. More importantly, some leaks indicate dangerous issues like a cracked heat exchanger, which can leak carbon monoxide into your home.

Don't panic if you find water. Most causes are fixable, but a quick, correct diagnosis protects your home and family.

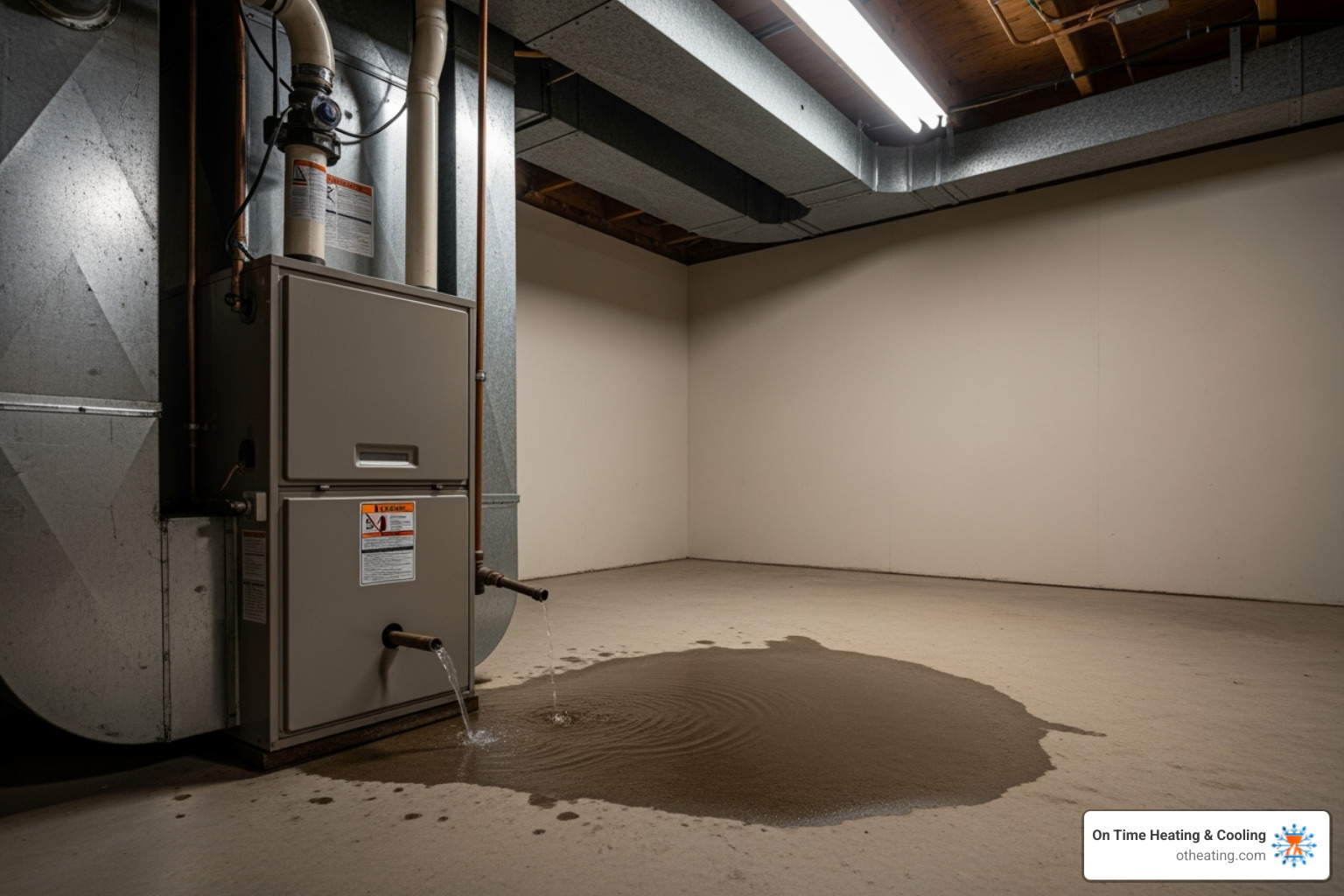

First Steps: What to Do When You Find Water Near Your Furnace

Finding a furnace leaking water can be alarming, but there are clear steps to handle it safely.

Your safety is the priority. The moment you spot a puddle, turn off your thermostat completely. This stops the furnace from running, which can worsen the leak or create electrical hazards.

Next, find the furnace power switch, usually on or near the unit, and turn it off immediately. This crucial step reduces the risk of electrical shock, as water and electricity are a dangerous mix.

If you have a gas furnace, you can also shut off the gas supply as a precaution. Turn the gas valve on the line leading to the furnace to "OFF." If you're unsure, skip this step and let a professional handle it.

Now, clean up the water thoroughly with towels or a wet-dry vacuum. Standing water can cause expensive damage to flooring and your home's foundation.

Moisture also creates the dangers of mold growth. Mold can damage your home and affect your family's health, leading to costly and difficult repairs.

These first steps minimize damage, but they are temporary measures. A furnace leaking water needs professional attention to fix the root cause. Our team at On Time Heating & Cooling offers reliable HVAC Repair Services in Waukesha, WI to get your furnace working properly again.

Identifying Your Furnace Type: Why It Matters for Leaks

When your furnace is leaking water, identifying its type is the key to a correct and speedy diagnosis.

The Tale of Two Furnaces

Your home likely has one of two furnace types: high-efficiency (condensing) or standard-efficiency (non-condensing). The difference between them explains why water might be pooling around your system.

High-efficiency furnaces are newer models designed to extract maximum heat from combustion. As a result, they naturally produce water during normal operation. These units have an AFUE rating of 90% or higher, converting at least 90% of fuel into heat.

Standard-efficiency furnaces are more traditional and less complex. They run hotter and don't extract as much heat, so they should not produce water under normal circumstances. Their AFUE rating is below 90%.

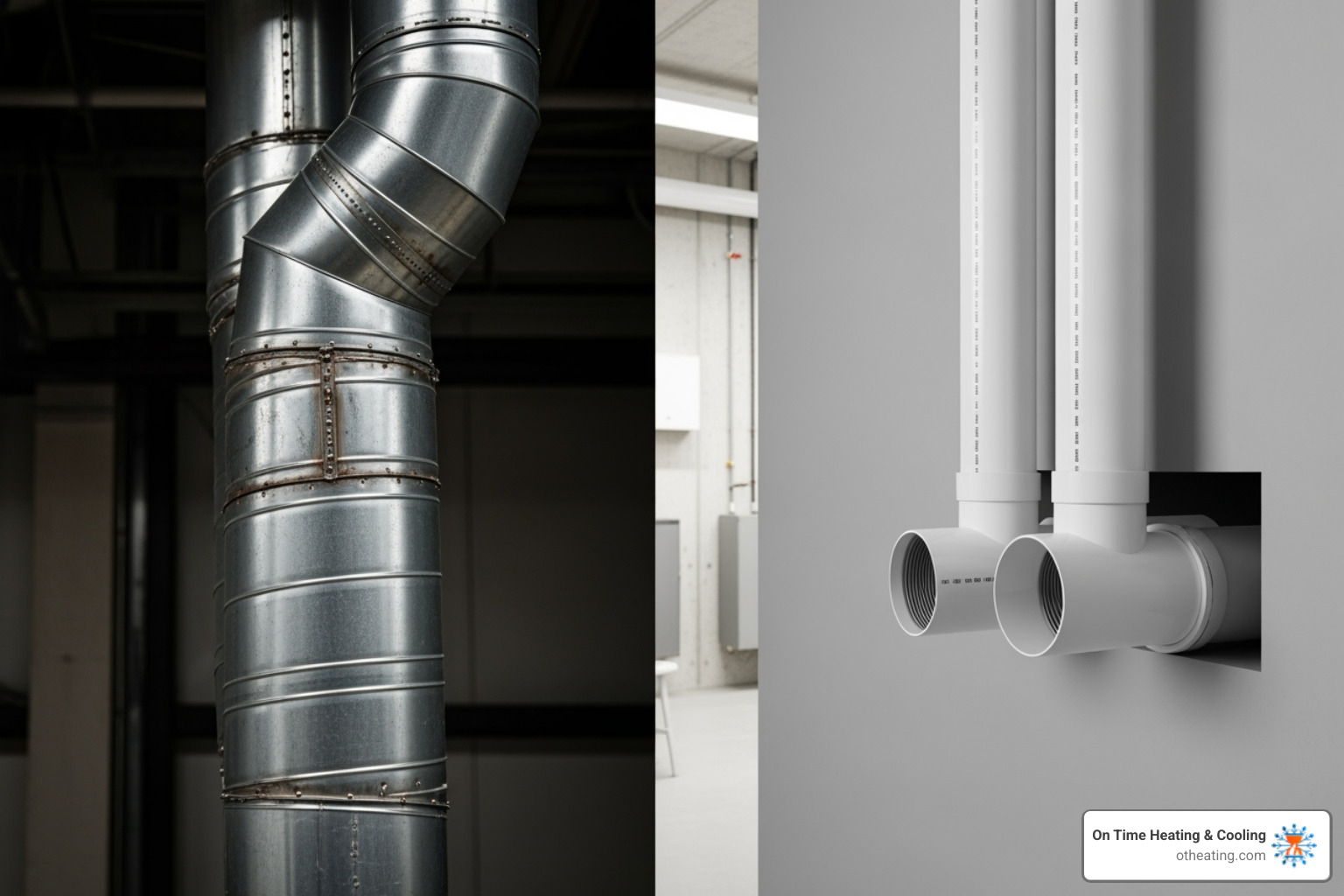

The Easy Way to Tell Them Apart

Look at the vent pipes to tell them apart. Standard-efficiency furnaces typically have a single metal vent pipe. High-efficiency furnaces usually have two white PVC pipes because the combustion gases are much cooler.

Why This Matters for Your Water Problem

Knowing your furnace type changes the approach to fixing a furnace leaking water situation.

If you have a high-efficiency furnace, water production is normal. A leak usually means something in the drainage system—like the condensate drain, trap, or pump—isn't working.

If you have a standard-efficiency furnace, any water is a red flag. The leak is likely from an external source, like a connected humidifier, your air conditioning system, or an improperly sized flue pipe.

For more details, the Department of Energy offers excellent high-efficiency furnace information.

Knowing your furnace type helps us zero in on the most likely causes, saving you time and money.

Common Causes of a Furnace Leaking Water

The source of a furnace leak often depends on its type, but some issues affect both high-efficiency and standard-efficiency models. Sometimes, the water isn't from the furnace at all but from a connected air conditioner or humidifier. Most leaks involve condensation. High-efficiency furnaces create condensation by design; if it can't drain, it spills. Standard furnaces don't produce water, so a leak points to an attached component or external issue.

One of the most common issues is a clogged drain line. Whether from your high-efficiency furnace or a nearby AC unit, these lines can get blocked by algae, mold, and dirt, causing a backup.

Another frequent problem is condensate pump failure. Many high-efficiency furnaces use a pump to move water to a drain. If the pump breaks or clogs, water overflows. These pumps typically last three to six years.

Also, check your humidifier if it's connected to your furnace. A leaking water line, cracked pan, or faulty valve can mimic a furnace leak. Similarly, shared drain lines with your air conditioning system can cause AC issues to appear as furnace leaks.

Leaks in High-Efficiency (Condensing) Furnaces

Since these furnaces produce condensation by design, a furnace leaking water almost always points to a problem with the condensate management system.

• Clogged condensate drain: The PVC line carrying water away can get blocked with sludge, algae, or debris, causing water to back up and overflow.
• Condensate trap blockage: This U-shaped pipe prevents gas from escaping, but if clogged with sediment, it stops drainage and causes leaks.
• Condensate pump malfunction: Common where floor drains aren't available, these pumps can fail due to a stuck float switch, power loss, or age. A pump older than six years may need replacement.
• Cracked secondary heat exchanger: This is a serious issue that causes water leaks and safety hazards. A crack can leak water and dangerous carbon monoxide into your home, requiring immediate professional attention.
• Inducer assembly leaks: The inducer motor draws gases through the heat exchangers, and leaks can form from cracks or loose connections. Calcium buildup can worsen the problem.

Regular maintenance can prevent these issues. Our Basic Furnace Maintenance guide has helpful tips.

Leaks Around Standard-Efficiency (Non-Condensing) Furnaces

Since standard-efficiency furnaces don't produce condensation, a furnace leaking water means the water is coming from an external source, which often makes diagnosis easier.

• Leaking humidifier: A prime suspect. Attached humidifiers can have clogged lines, cracked pans, loose connections, or faulty valves, all of which can drip water onto or near the furnace.
• Improperly sized flue pipe: If a metal flue pipe is too large or improperly sloped, combustion gases can cool too quickly, creating condensation that drips down. A blocked vent can cause similar issues.
• AC drain line clog: This is a common cause, especially with an AC unit above the furnace. During summer, a clogged AC drain can back up and overflow, dripping onto the furnace.
• Leaking AC drain pan: The pan that collects AC condensation can crack or rust, causing water to leak onto your furnace area. Learn more in our guide to Solutions for Home AC Water Leaks.

Why is my furnace leaking water if it's a common problem?

Sometimes, a leak is caused by factors affecting the entire HVAC system, not just obvious plumbing issues.

• Clogged air filter: A dirty filter restricts airflow, causing the AC's evaporator coil to freeze. When the coil thaws, it can overwhelm the drain system, causing an overflow. Change your filter every three months to prevent this.
• Frozen evaporator coils: Low refrigerant or other AC problems can also cause freezing. The subsequent thawing creates the same overflow situation.
• Restricted airflow: Blocked vents or a malfunctioning blower motor can stress your system, leading to component failures that cause condensation problems and leaks.

For more on how these parts work together, see our guide on Common Furnace Repair Problems and Solutions.

Preventing Future Leaks: A Proactive Maintenance Checklist

Most furnace leaks are preventable with proactive maintenance, saving you from major headaches later.

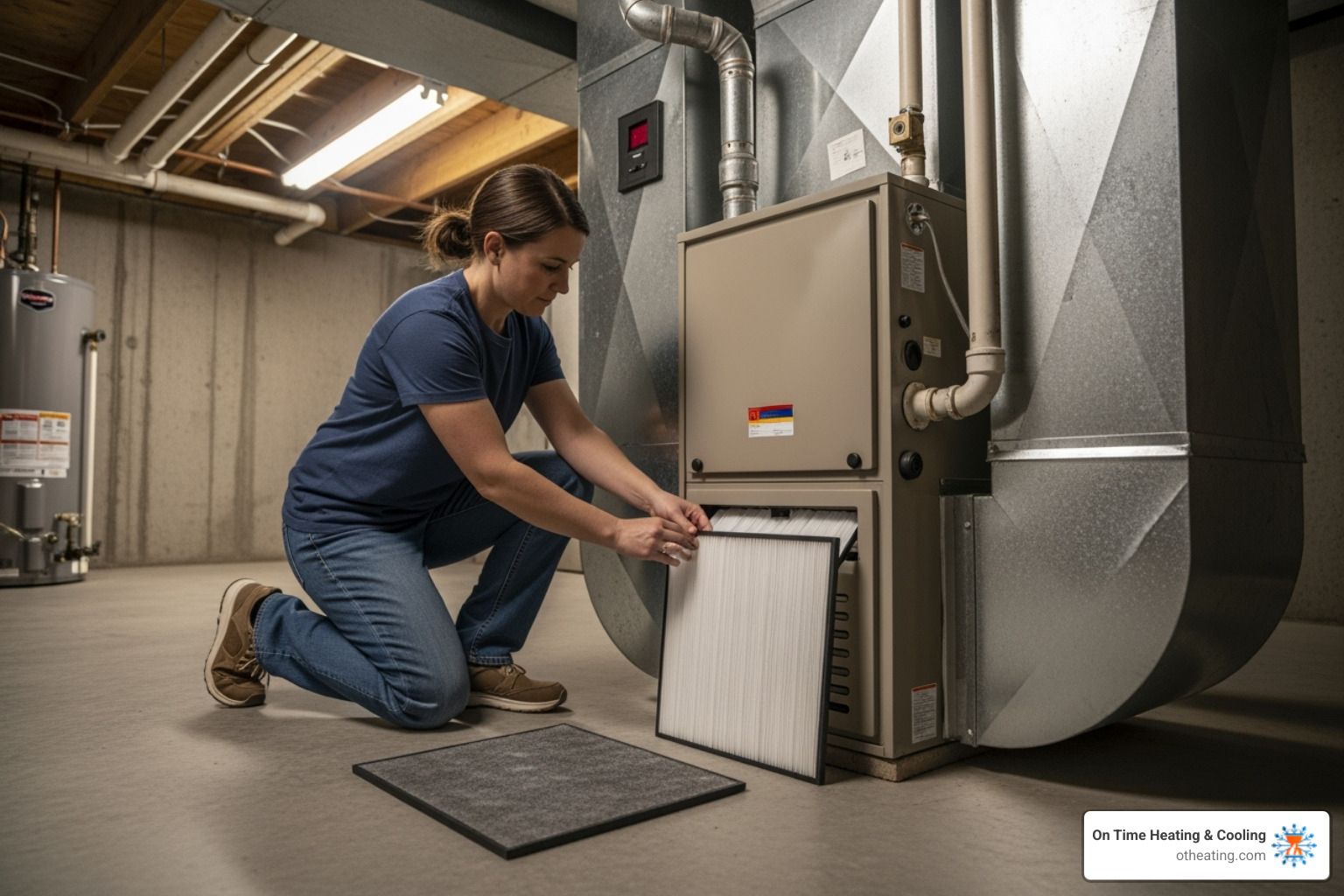

The simplest step is to change your furnace filter regularly. A dirty filter restricts airflow, stressing your system and potentially causing frozen coils that overflow when they thaw. Change it every three months, or more often if you have pets.

Annual professional inspections are your best defense against surprise leaks. Technicians can spot small problems before they become expensive, clean the condensate system, check for corrosion, and ensure safe operation.

For high-efficiency furnaces, keep condensate lines clean. Pouring a vinegar and water solution down the line a few times a year helps prevent clogs from algae and mold. A technician can perform a more thorough cleaning during annual service.

Don't forget your humidifier. A quick monthly check for cracks, leaks, or mineral buildup can prevent a leak.

Condensate pumps have a lifespan of 3-6 years. If yours is old or making strange noises, consider replacing it proactively to prevent a failure and potential flooding.

This approach is part of our philosophy that Routine Furnace Service Keeps System Running.

Your simple annual maintenance checklist:

1. Change furnace filter every 1-3 months
2. Clear the area around your furnace of storage and debris
3. Check condensate drain line for clogs, add vinegar treatment
4. Inspect humidifier components for leaks and buildup
5. Listen for unusual noises that might signal trouble
6. Schedule your professional tune-up for comprehensive care

Staying on top of these basics prevents a furnace leaking water, extends your system's life, and keeps your family comfortable.

Frequently Asked Questions about a Furnace Leaking Water

Here are answers to the most common questions about a furnace leaking water.

Is it normal for a furnace to drain water?

The answer depends on your furnace type.

For a high-efficiency furnace, yes, water drainage is normal. These units create condensation as a byproduct of their heating process, which is then drained away. A puddle indicates a drainage problem, not a normal operation.

For a standard-efficiency furnace, no, it should never produce water. Any water found near a standard unit is a red flag, likely coming from an attached humidifier, the AC system, or an issue with the exhaust vent.

Why is my furnace leaking water in the summer when the heat is off?

If your furnace leaks in the summer, your air conditioner is the likely culprit. The AC's indoor unit (evaporator coil) often sits on top of the furnace. As the AC cools your home, it removes humidity, which collects in a drain pan and flows out a condensate line.

A clogged AC condensate drain is a very common problem. When the line is blocked, water backs up and overflows the drain pan, dripping onto the furnace below. The drain pan itself could also be cracked or rusted. Another cause is a frozen evaporator coil, which produces excess water when it thaws, overwhelming the drain system.

For a deeper dive into these cooling-related water problems, check out our guide on AC Drainage Problems in Homes.

Is a furnace leaking water an emergency?

A leaking furnace should be treated as an urgent issue. Act quickly to prevent bigger problems. The primary risks include:

• Water damage: Leaks can quickly cause expensive damage to flooring, subflooring, and your home's foundation.
• Electrical shock risk: Water mixing with your furnace's electrical components creates a risk of short circuits, system damage, or fire.
• Furnace malfunction: The most serious concern is a cracked heat exchanger. This can leak deadly, odorless carbon monoxide into your home. This issue is more common in high-efficiency furnaces and requires immediate professional attention.

Due to these safety risks, do not attempt complex DIY repairs. After taking immediate safety steps, call a professional as soon as possible. It's better to address a simple clog now than to find a serious safety hazard later.

Conclusion: When to Call a Professional for Your Leaking Furnace

While it's tempting to try a DIY fix for a furnace leaking water, most leaks require professional expertise. Beyond basic steps like changing a filter, furnace systems are complex. A seemingly simple leak can be a symptom of a larger problem involving gas lines, electrical components, and pressurized systems where mistakes can be dangerous and costly.

Complex repairs are where our NATE-certified technicians excel. We have the specialized tools and experience to trace problems to their real source, not just the obvious symptoms.

The most serious concern is the risk of carbon monoxide danger from a cracked heat exchanger. This odorless, colorless gas is impossible to detect without special equipment and poses a deadly threat to your family.

A professional diagnosis makes all the difference. Our team finds the root cause of the leak to provide a lasting solution, whether it's a simple cleaning or a discussion about Choosing Between Furnace Repair and Replacement.

At On Time Heating & Cooling, we blend old-school customer service with modern technical expertise. Our commitment to punctuality and quality service ensures you get the best care.

Beyond safety risks, a professional gets the job right the first time, avoiding costly mistakes from well-intentioned but incorrect DIY repairs.

If you're experiencing a leak, it's crucial to get expert help. Contact us for professional Furnace Repair Services in Waukesha, WI to ensure your system is safe and efficient.
