Why Your Furnace Pressure Switch is Essential for Home Safety

A furnace pressure switch is a critical safety device that monitors air pressure in your heating system and prevents dangerous conditions like carbon monoxide buildup or gas leaks. This small but vital component acts as a safety sentinel, shutting down your furnace if proper venting conditions aren't detected.

Key Functions of a Furnace Pressure Switch:

• Safety Protection - Prevents backdrafting of exhaust gases into your home
• Venting Verification - Ensures the draft inducer motor creates proper negative pressure
• Ignition Control - Allows the furnace to ignite only when safe venting is confirmed
• System Shutdown - Automatically stops the furnace if dangerous conditions are detected

When your thermostat calls for heat, the pressure switch must close its electrical circuit before the gas valve opens and ignition begins. If the switch detects insufficient airflow from a blocked vent, damaged hose, or failed inducer motor, it keeps the circuit open and prevents your furnace from lighting.

Common signs your pressure switch may be failing include:

• Furnace won't ignite despite the inducer motor running
• Short cycling (furnace starts then quickly shuts off)
• Error codes flashing on your control board
• Inducer motor runs continuously without ignition

Understanding how this component works can help you troubleshoot furnace problems and know when it's time to call a professional. The pressure switch connects your furnace's mechanical operation with its electrical controls, making it essential for both safety and proper heating.

What is a Furnace Pressure Switch and Why is it Critical?

Think of your furnace pressure switch as the careful guardian that stands between your family and dangerous exhaust gases. This small but mighty component might not look like much, but it's one of the most important safety devices in your entire heating system.

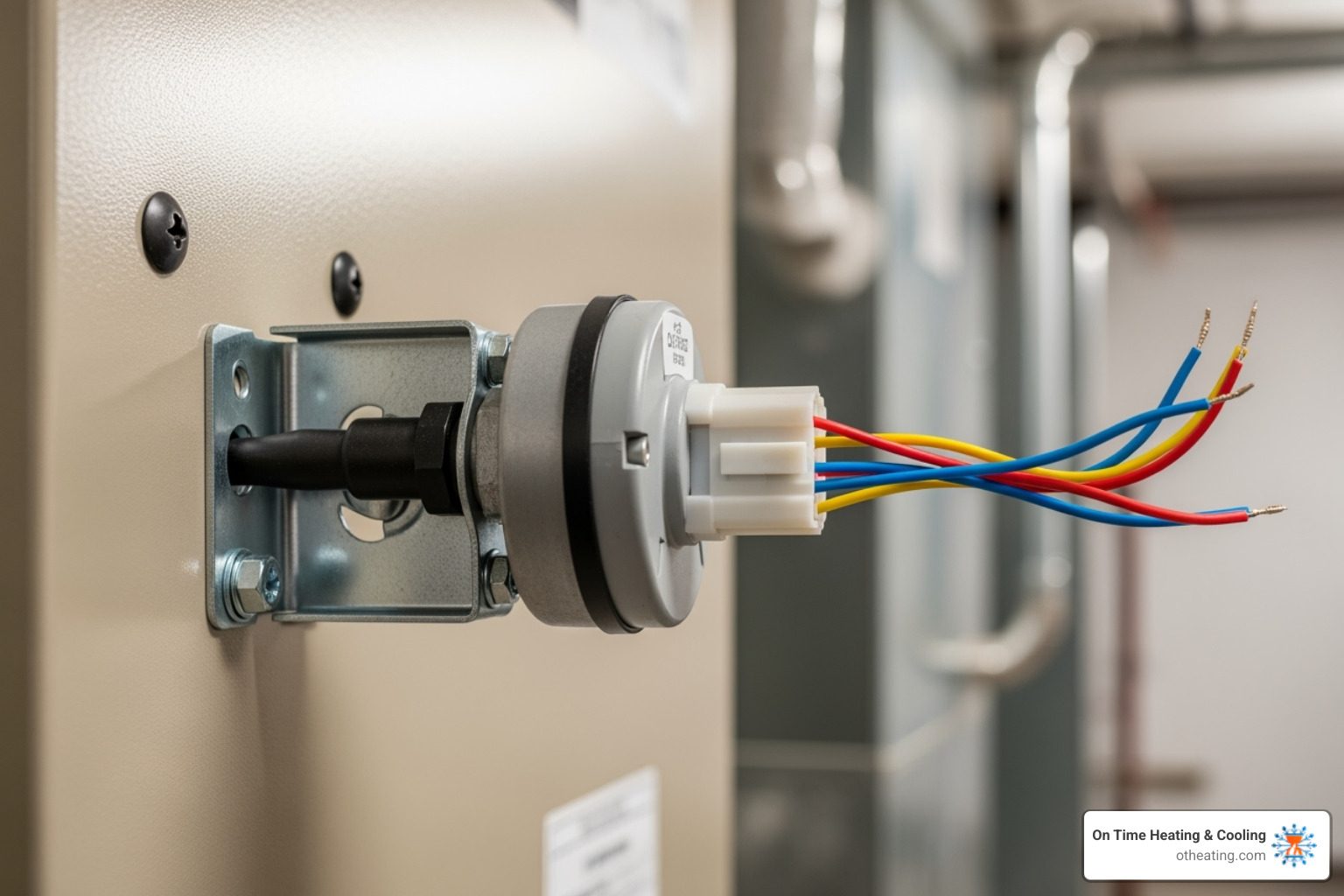

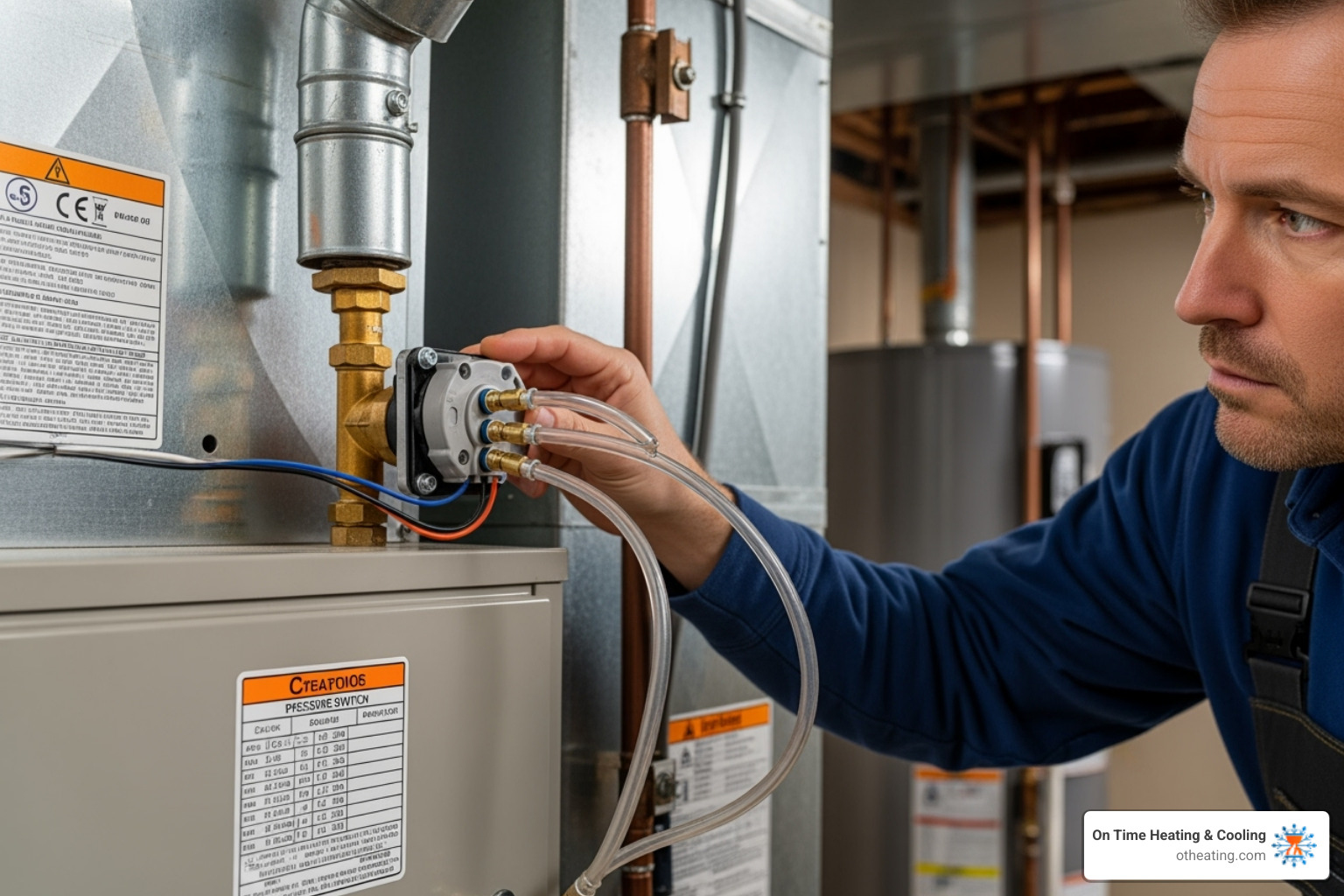

You'll typically find this switch mounted near your furnace's draft inducer motor – that's the fan responsible for pulling exhaust gases out of your furnace and safely venting them outside your home. The switch connects to your furnace's venting system through a small hose, constantly monitoring what's happening inside.

The Safety Sentinel of Your Furnace

Here's how your furnace pressure switch keeps you safe: When your thermostat calls for heat, your furnace doesn't just start burning gas right away. Instead, it first fires up the draft inducer motor, which creates negative pressure (basically a vacuum) inside the combustion chamber and flue pipe.

Inside the pressure switch sits a flexible diaphragm that responds to this pressure change. When the draft inducer creates enough negative pressure, the diaphragm moves and closes an electrical circuit. This tells your furnace's control board, "All clear – it's safe to light the burners!"

But what if something's wrong? Maybe there's a bird's nest blocking your vent pipe, or perhaps a hose has cracked. Without proper negative pressure, that diaphragm stays put, keeping the electrical circuit open. Your furnace gets the message loud and clear: don't ignite. This prevents dangerous situations like carbon monoxide backing up into your home or gas leaks from occurring.

This safety feature is crucial for modern energy-efficient residential furnaces, and it's why your furnace prioritizes safety over simply making heat. The furnace startup sequence relies completely on this process – no pressure switch approval means no heat, period.

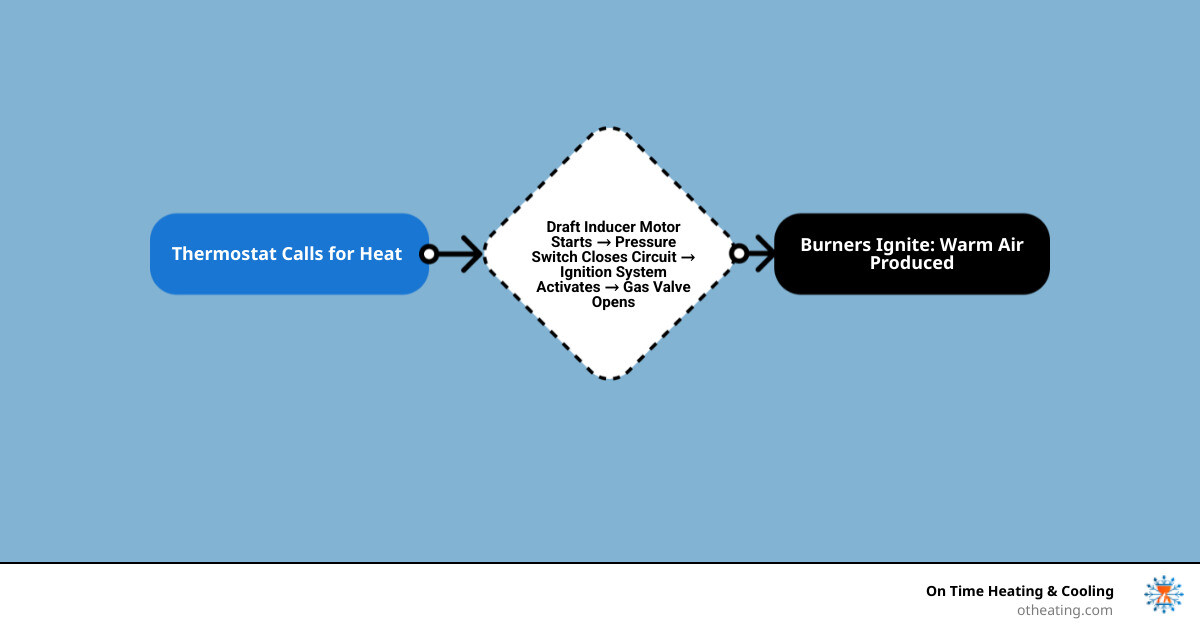

The sequence works like this: your thermostat calls for heat, the draft inducer motor starts creating negative pressure, the pressure switch senses this and closes its contacts, the control board gets the green light, and only then does ignition begin. If the switch doesn't close, the whole process stops right there.

Different Types of Pressure Switches

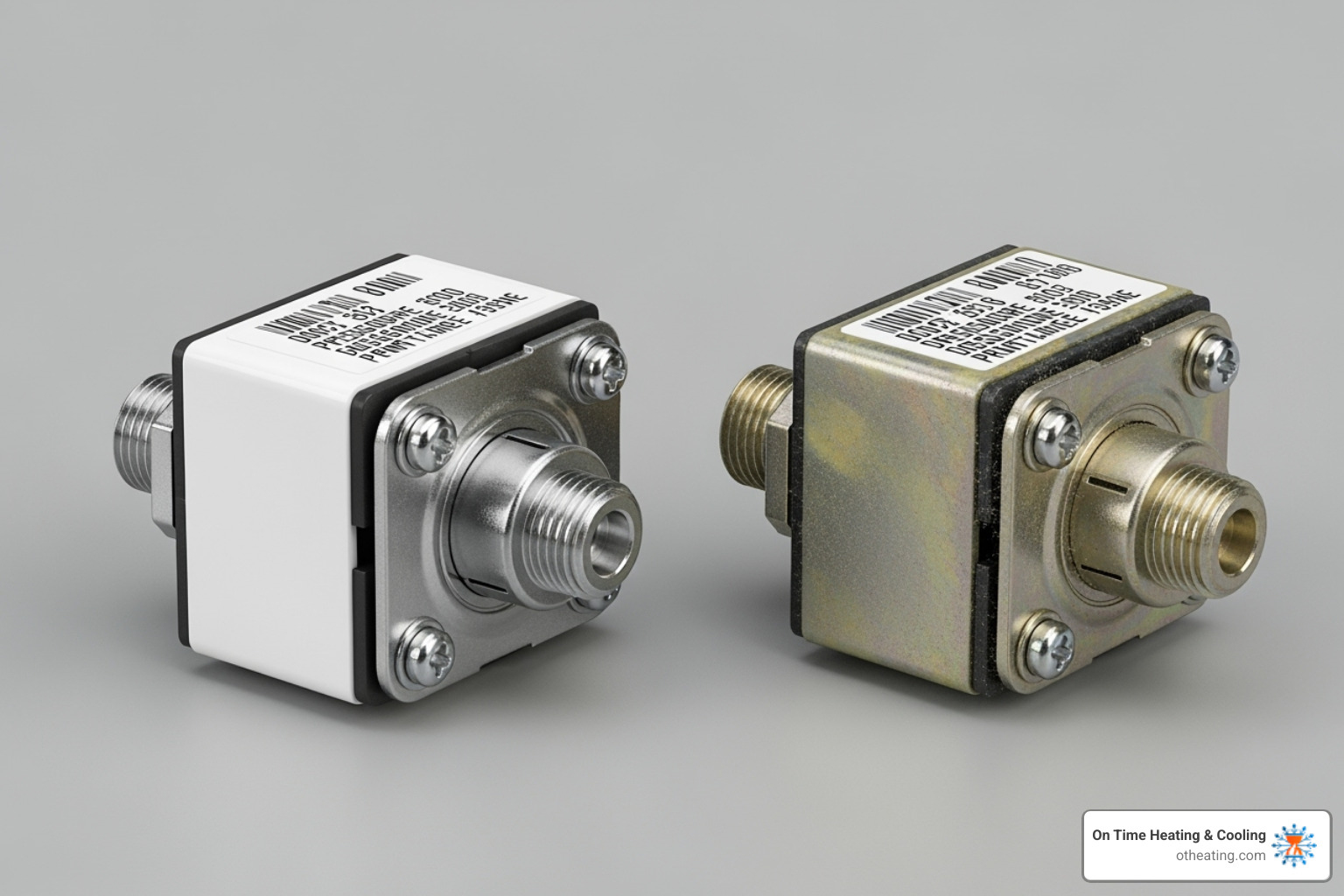

Not all furnace pressure switches are created equal. The type you have depends on your furnace's design and efficiency level.

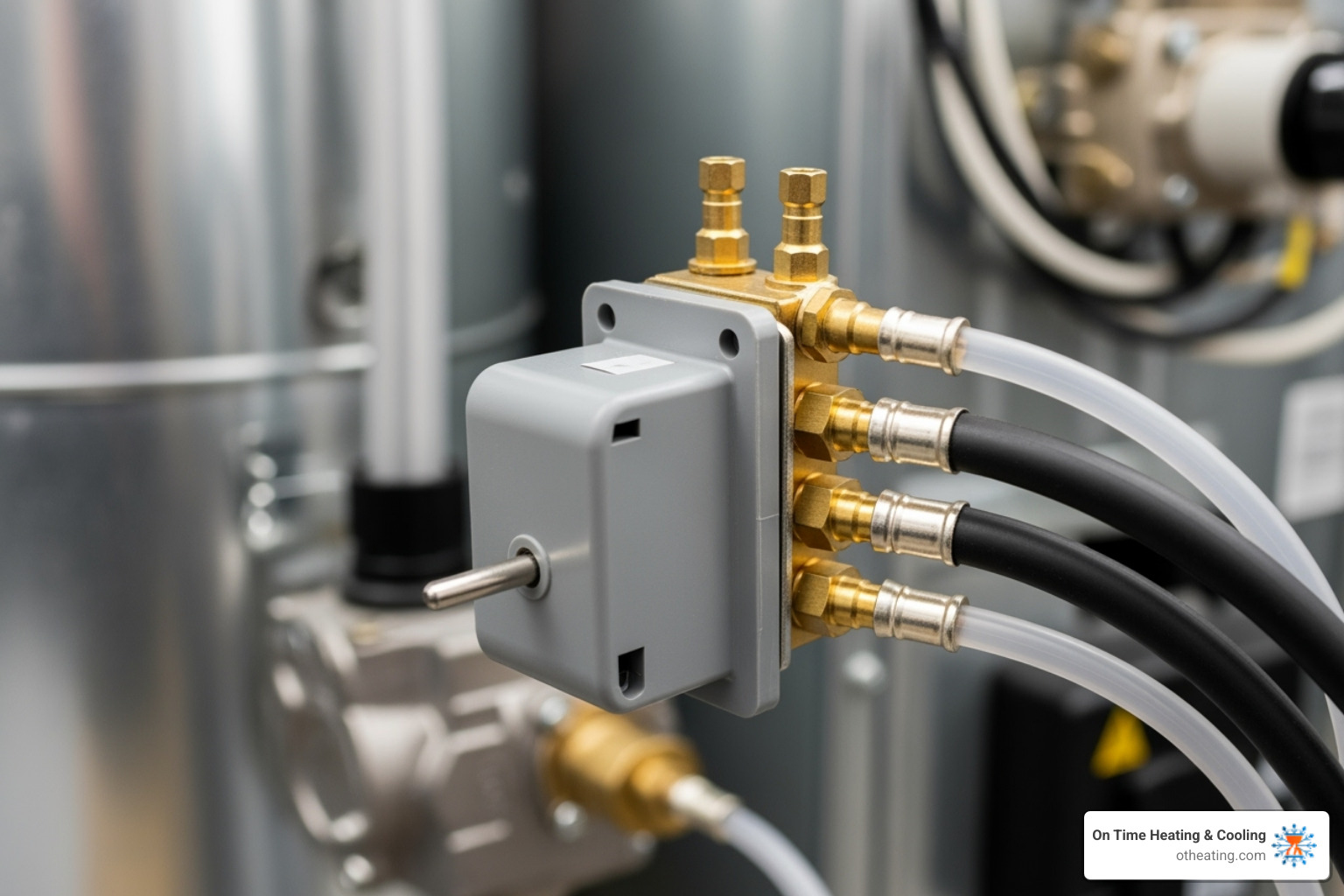

Single-stage furnaces keep things simple with typically one pressure switch that has a single-port design. This switch monitors one specific pressure level needed for safe operation.

Two-stage furnaces are a bit more complex since they operate at both low and high fire modes. These often use either two separate pressure switches or one dual-port switch to monitor pressure requirements for both operating levels.

Modulating furnaces represent the most advanced heating technology, constantly adjusting their output for maximum comfort and efficiency. These sophisticated systems may use multiple pressure switches to monitor the varying pressure needs across their wide range of operation.

High-efficiency models often feature more complex pressure sensing systems than conventional models. Condensing furnaces, which extract extra heat from exhaust gases, frequently use dual-port switches that can sense pressure differences at multiple points in the venting system.

Understanding which type you have matters when troubleshooting problems. A single-port switch is straightforward, while dual-port switches in high-efficiency units provide more precise monitoring but can be trickier to diagnose when things go wrong.

How to Troubleshoot a Furnace Pressure Switch

When your furnace starts acting up – maybe it won't ignite, keeps shutting off unexpectedly, or flashes mysterious error codes – there's a good chance your furnace pressure switch might be the troublemaker. The good news? Many pressure switch issues can be diagnosed with some basic troubleshooting steps that don't require a service call.

Before we dive in, let's talk safety. Your furnace involves electricity, gas, and combustion – not exactly things you want to mess around with carelessly. Always turn off power to your furnace at both the thermostat and the circuit breaker before doing any hands-on inspection.

Common Reasons for a Furnace Pressure Switch Failure

Understanding why pressure switches fail can help you spot problems early and sometimes even prevent them. Most failures aren't dramatic – they're usually the result of gradual wear or simple blockages that develop over time.

Hose problems are probably the most common culprit we see. Those small rubber or silicone hoses connecting your furnace pressure switch to the draft inducer can get clogged with debris, water, or even become home to insects looking for a cozy spot. Over several heating seasons, these hoses can also crack or become brittle, creating tiny air leaks that throw off the pressure readings.

Blocked vents are another frequent issue, especially after storms or during certain seasons. Bird nests, leaves, snow, or ice can block your furnace's exhaust vent or flue pipe. When this happens, your draft inducer can't create the negative pressure it needs, and the pressure switch does exactly what it's designed to do – keeps your furnace from igniting to protect you from carbon monoxide buildup.

Sometimes the problem is right at the switch itself. Debris buildup around the switch ports or inside the unit can cause the internal diaphragm to stick. This is particularly common in older furnaces where dust and soot have had years to accumulate.

Water issues can plague high-efficiency furnaces. If your condensate drain line gets blocked or isn't sloped properly, water can back up into the pressure switch hose. Try as it might, your switch can't sense air pressure through a hose full of water.

Like any mechanical part, pressure switches simply wear out over time. The internal diaphragm can become stiff, electrical contacts can corrode, and connections can work loose. Most switches last many years, but nothing lasts forever.

Don't forget about the draft inducer motor itself. If this motor isn't running properly – maybe it's gotten sluggish, making weird noises, or not running at all – it won't create the pressure your switch is waiting to detect.

Testing a Faulty Furnace Pressure Switch

Once you've turned off the power and done a visual inspection of the hoses and connections, you can test whether your furnace pressure switch is actually working. You'll need a multimeter for this – a handy tool that measures electrical properties.

Start with a continuity test using the ohmmeter function. Disconnect both wires from the pressure switch terminals and set your multimeter to measure resistance (ohms). Touch one probe to each terminal of the switch. With no pressure applied, you should see "OL" (open loop) or infinite resistance – this means the switch is open, which is correct.

Here's where it gets interesting. Gently create suction on the hose port of the pressure switch (you can carefully suck on it or use a hand vacuum if you prefer). You should hear a faint click as the internal diaphragm moves, and your multimeter should suddenly read 0 ohms or very close to it. This means the switch closed the circuit, just like it should when your draft inducer creates negative pressure.

If the switch shows 0 ohms even without suction, it's stuck closed. If it stays at "OL" even when you apply suction, it's stuck open. Either way, you've found your problem.

For a voltage test, reconnect the wires and restore power to your furnace. Set your multimeter to measure AC voltage (usually 24-28 volts). When your inducer motor starts running, you should measure about 24-28 volts across the switch terminals. Once the inducer establishes proper draft and the switch closes, that voltage should drop to nearly zero, indicating power is flowing through the closed switch.

This video showing how to test a pressure switch can walk you through the process visually if you're more of a hands-on learner.

Bypassing a Switch for Diagnosis (With Caution)

Here's a question we get a lot: "Can I just bypass the pressure switch to get my heat working?" Technically, yes – but this should only be done for a few minutes to confirm a diagnosis, never as a permanent solution.

Bypassing is for diagnostic purposes only and comes with serious risks. You're essentially disabling a safety device that protects your family from carbon monoxide poisoning.

If you decide to try this diagnostic step, turn off all power first. Locate your furnace pressure switch and carefully disconnect one wire from its terminal. Use a jumper wire (a short piece of insulated wire with clips) to connect the disconnected wire directly to the other wire still attached to the switch. This creates a closed circuit that tricks your furnace into thinking the pressure switch is working.

Restore power temporarily and see if your furnace ignites. If it does, you've confirmed the switch is bad. If it still won't start, the problem lies elsewhere – maybe the inducer motor, control board, or an actual blockage in your venting system.

Remove the jumper immediately after your test. We can't stress this enough – leaving a pressure switch bypassed means your furnace could operate even with dangerous venting problems. It's like disconnecting your smoke detector because it keeps beeping – you might stop the noise, but you're eliminating crucial protection.

This bypass test helps confirm whether you need a new pressure switch or if there's a bigger issue that requires professional diagnosis. Either way, you'll have better information when you call for service.

Maintenance and Replacement Guide

Just like your car needs regular oil changes, your furnace thrives with consistent care – and that includes keeping an eye on your furnace pressure switch. Think of it as preventive medicine for your heating system. A little attention now can save you from chilly nights and emergency repair calls later.

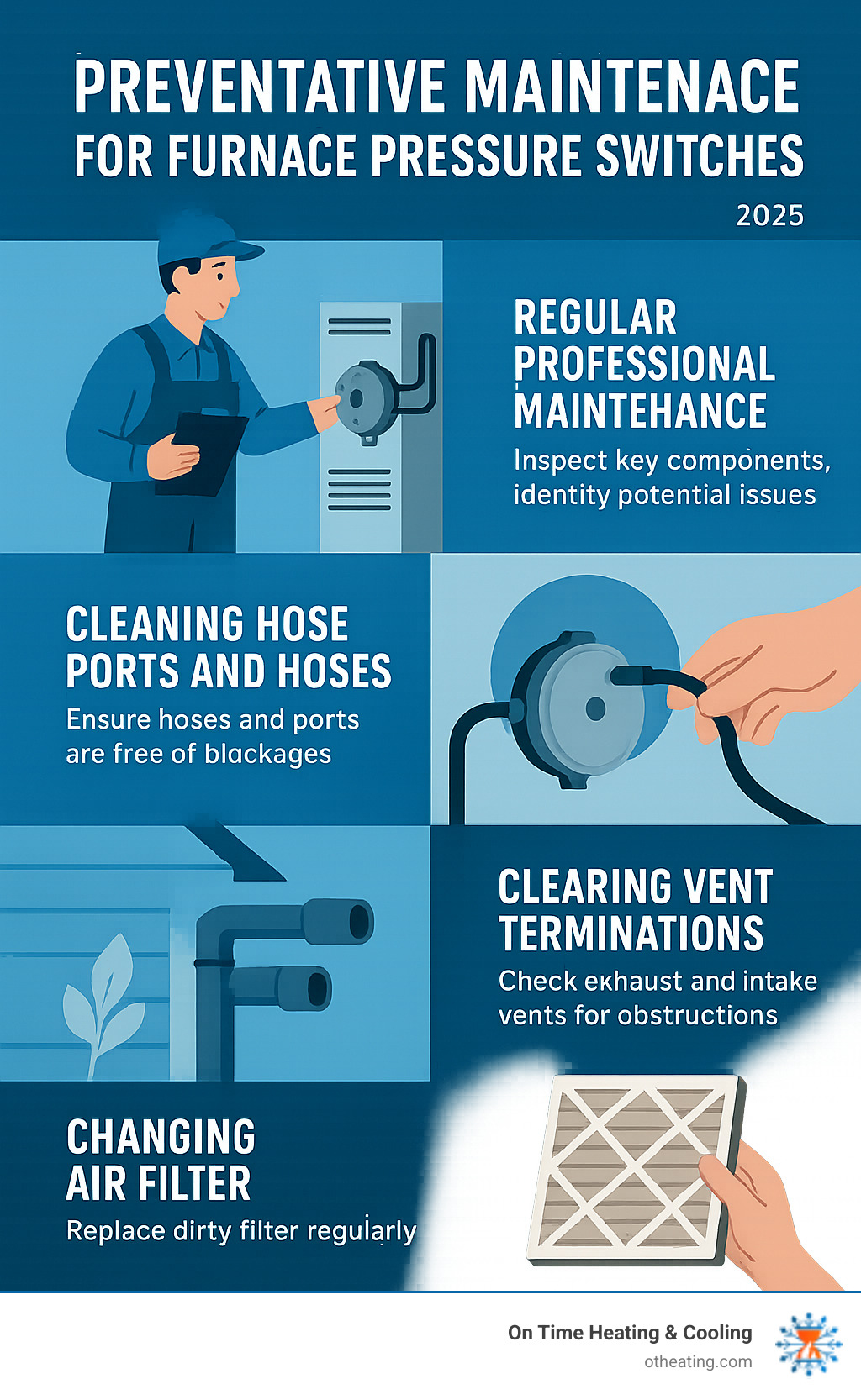

Preventing Pressure Switch Failures

The secret to a long-lasting furnace pressure switch? Don't wait for it to break. Here at On Time Heating & Cooling, we've seen countless switches that could have lasted years longer with just a bit of regular TLC.

Annual professional maintenance is your best insurance policy. During our Clean & Check service, we inspect your pressure switch and its connected hoses, looking for early warning signs that most homeowners would miss. We can spot a hose that's starting to crack or a port that's collecting debris before these small issues become big problems.

Between professional visits, there are simple things you can do to keep your system happy. Check those little hoses that connect to your pressure switch – they're surprisingly important. Look for cracks, kinks, or anything that seems out of place. The ports where these hoses connect can get dusty or collect condensation, so a gentle cleaning during your regular furnace area tidying can work wonders.

Your outdoor vents deserve attention too, especially after storms or during winter. Snow, ice, leaves, and even ambitious birds can block these vents. When your exhaust can't get out properly, your pressure switch does its job by shutting things down – but you'll be left without heat until the blockage is cleared.

Here's something many homeowners don't realize: your air filter affects more than just air quality. A clogged filter makes your whole system work harder, including the draft inducer that creates the pressure your switch monitors. Improving energy efficiency through maintenance isn't just about saving money – it's about reducing stress on components like your pressure switch.

If you have a high-efficiency furnace, keep an eye on your condensate drain. When this drain backs up, water can flood the pressure switch hose, causing malfunctions that look like switch failures but are really drainage problems.

Steps for Replacing a Furnace Pressure Switch

Replacing a furnace pressure switch isn't rocket science, but it does require patience and respect for safety. If you're comfortable with basic home repairs and electrical work, you might tackle this yourself. If not, there's no shame in calling us – we've seen what happens when well-meaning homeowners get in over their heads.

Safety isn't negotiable. Turn off power to your furnace at both the thermostat and the circuit breaker. If your furnace was running recently, give it time to cool down. We can't stress this enough – rushing leads to mistakes, and mistakes with heating systems can be dangerous.

Start by taking a photo of everything before you touch it. Your phone is your best friend here – those pictures will guide you when it's time to put everything back together. Trust us, what seems obvious now won't be so clear later when you're holding a handful of wires.

Label your wires with masking tape if they're not already color-coded. Most pressure switches aren't picky about which wire goes where, but keeping things organized prevents confusion. Carefully disconnect the wires by pulling on the connectors, not the wires themselves.

The hoses come off next. Give them a good look while they're in your hands – cracked or brittle hoses should be replaced along with the switch. It's like changing your oil filter when you change your oil – you're already there, so why not?

Removing the old switch usually means unscrewing one or two screws. Keep track of these screws – they have a habit of disappearing when you need them most. The new switch goes in the same spot, secured with the same screws.

Reconnecting everything is just the reverse process, but take your time. Make sure hoses are snug and wires are firmly attached. A loose connection now means a service call later.

Before you celebrate, test your work. Turn the power back on and call for heat. The furnace should go through its normal startup dance – inducer motor, then ignition, then warm air. If something doesn't sound right, turn everything off and double-check your connections.

There's no shame in calling for backup if things don't go smoothly. We'd rather help you finish the job correctly than fix what went wrong when you got stuck halfway through.

Frequently Asked Questions about Furnace Pressure Switches

When your furnace starts acting up, it's natural to have questions. We've been helping homeowners in the Waukesha area for years, and these are the most common concerns we hear about furnace pressure switches:

What are the main signs of a bad furnace pressure switch?

You'll typically notice your furnace trying to start but failing to follow through. The most telltale sign is hearing your draft inducer motor kick on, but then... nothing. Your furnace just sits there, sometimes displaying an error code on the control board.

Short cycling is another dead giveaway – your furnace starts up, runs briefly, then shuts down and repeats this frustrating dance. This happens because the furnace pressure switch isn't closing its electrical circuit properly, so your furnace can't move past the safety checks to actually ignite the burners.

Some homeowners describe it as their furnace "teasing" them – it sounds like it's trying to work, but never delivers the heat you need. The draft inducer might run continuously without the main burners ever lighting, or you might see specific error codes flashing that point directly to pressure switch issues.

Can I just reset my furnace pressure switch?

Here's something that surprises many homeowners: furnace pressure switches don't have reset buttons like some other components. They're designed to be automatic – when they sense the right pressure conditions, they close their circuit, and when they don't, they stay open.

If your pressure switch seems "stuck," there's usually a good reason. It might be detecting a real problem like a blocked vent pipe, a clogged hose, or insufficient airflow from your draft inducer motor. In these cases, the switch is actually doing its job by keeping your family safe from potential carbon monoxide exposure.

You can try power cycling your entire furnace – turn it off at the breaker for about 30 seconds, then turn it back on. This might clear temporary error codes, but it won't fix the underlying issue causing the pressure switch to malfunction. If the problem persists after a power cycle, you're looking at either a faulty switch or a real ventilation problem that needs attention.

When should I call a professional instead of doing it myself?

While we've walked you through some basic troubleshooting steps, there are definitely times when calling a professional is the smart move. If electrical work makes you nervous, don't push yourself – furnaces involve both gas and electricity, and safety should always come first.

Call us when you've tested or replaced the pressure switch but your furnace still isn't working properly. This often indicates a more complex issue like a failing draft inducer motor, a blockage deep in your venting system that you can't reach, or problems with your furnace's control board.

Sometimes what looks like a simple furnace pressure switch problem is actually a symptom of something bigger. Our technicians have specialized tools and experience to diagnose these trickier issues quickly and safely. If you're dealing with furnace troubles anywhere in our service area – whether it's Menomonee Falls, Brookfield, or the surrounding communities – we're here to help get your heat back on track.

Stay Warm and Safe: Know When to Call the Pros

Your furnace pressure switch might be tiny, but it packs a powerful punch when it comes to keeping your family safe and warm. Throughout this guide, we've walked you through how this little safety guardian works, what can go wrong, and how to troubleshoot common issues.

While we're all for empowering homeowners with knowledge, there's a fine line between what you can handle yourself and when it's time to call in the cavalry. Simple visual inspections, checking for obvious blockages, or testing a switch with a multimeter are reasonable DIY tasks for someone comfortable with basic electrical work. But when things get complicated – like diagnosing control board issues, dealing with complex venting problems, or replacing major components like the draft inducer motor – that's when our expertise really shines.

Your furnace's safety systems exist for a reason. If your furnace pressure switch keeps tripping or you're seeing error codes you can't decipher, there's usually an underlying issue that needs professional attention. We've seen too many well-intentioned DIY repairs turn into bigger problems (and bigger repair bills) down the road.
