Stop the Flip with These AC Breaker Fixes

What an AC Circuit Breaker Keeps Tripping Means — and Why It Matters

ac circuit breaker keeps tripping what it means is simple: your electrical system is detecting more current than it can safely handle, and it's shutting itself off to protect your home from overheating wires or worse — an electrical fire.

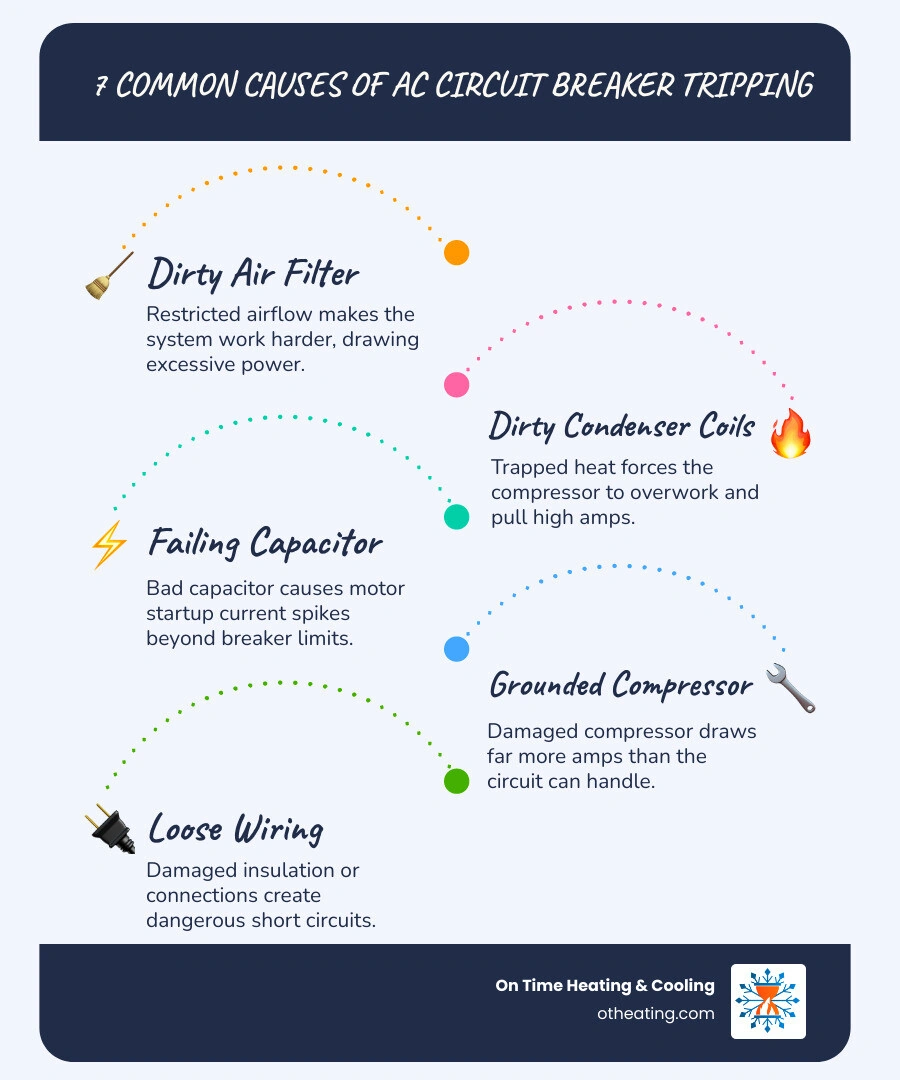

Here are the most common reasons your AC breaker keeps tripping:

• Dirty air filter — restricted airflow forces your system to work harder and draw more power
• Dirty condenser coils — trapped heat causes the compressor to overwork
• Failing capacitor — a bad capacitor causes the motor to draw a spike of current at startup
• Failing or grounded compressor — a damaged compressor can pull far more amps than the breaker allows
• Loose wiring or a short circuit — damaged insulation or loose connections create dangerous electrical faults
• Worn-out circuit breaker — older breakers can trip even without a true overload
• Broken outdoor fan motor — without proper airflow, the outdoor unit overheats rapidly

If your breaker tripped once and reset fine, it may have been a minor surge. But if it keeps tripping — especially in the middle of a hot Menomonee Falls summer — something in your AC system needs attention. Ignoring it risks damaging your compressor, burning out wiring, or creating a fire hazard.

One reset is okay to try. More than that, stop and call a professional.

Understanding ac circuit breaker keeps tripping what it means

When we talk about your air conditioner’s circuit breaker, we are talking about the "bouncer" of your home’s electrical system. Its job is to monitor the flow of electricity (measured in amps) to your unit. If your AC is rated for a 20-amp circuit but suddenly tries to pull 30 or 40 amps, the breaker "trips" or flips to the OFF position. This is a vital safety mechanism designed to prevent electrical surges from melting your wire insulation.

In the 2026 cooling season, with temperatures in Southeast Wisconsin reaching record highs, your AC is under more pressure than ever. If you find yourself wondering about ac circuit breaker keeps tripping what it means, it usually points to an overload scenario. This happens when the system is struggling so hard to move air or dissipate heat that it demands an unsafe amount of electricity.

To keep your home safe, your AC should always be on a dedicated circuit. If other high-power appliances are sharing the line, you’ll see frequent trips. You can learn more about identifying these issues in our guide to Common AC Problems. Understanding this protective response is the first step to Resolve Frequent AC Circuit Breaker Trips before they lead to expensive component failures.

Why your ac circuit breaker keeps tripping what it means for your safety

Safety is our primary concern at On Time Heating & Cooling. A tripping breaker is often a warning of a "ground fault." Statistics show that ground faults make up about 98% of all electrical faults that cause breakers to trip. A ground fault occurs when electricity escapes its intended path — perhaps due to frayed wire insulation — and hits the metal casing of the AC or the ground wire.

This is a critical electrical hazard. If the breaker didn't trip, the metal exterior of your AC unit could become electrified, posing a serious shock risk to anyone nearby. Furthermore, the heat generated by these shorts can quickly lead to house fires. If you suspect an electrical fault in Waukesha or Menomonee Falls, it is time to seek professional HVAC Repair Waukesha WI to ensure your wiring is secure and your family is safe.

Identifying if the ac circuit breaker keeps tripping what it means for the compressor

The compressor is the "heart" of your AC, and it is also the most power-hungry component. If your breaker trips the very second the AC tries to kick on, the compressor is likely the culprit.

Two common issues here are "locked rotor amps" and a "grounded compressor." A grounded compressor happens when an internal electrical winding breaks and touches the side of the compressor's metal housing. This causes an immediate, high-intensity short circuit that snaps the breaker open instantly. If this occurs, it often leads to oil ignition inside the unit and a total system burnout. In these cases, you’ll need expert AC Repair Waukesha WI to determine if the compressor can be saved or if a full unit replacement is safer for your home.

Mechanical Culprits: Airflow and Overheating

Sometimes the problem isn't electrical at all — it's mechanical. Your AC works by absorbing heat from inside your home and releasing it outside. If anything blocks that process, the system overheats, and the motors draw more electricity to compensate.

The most common "hidden" cause is a dirty air filter. Imagine trying to run a marathon while breathing through a thick pillow. That is what your blower motor feels like when the filter is clogged with dust and pet dander. The motor has to work twice as hard to pull air through the blockage, which spikes the amperage and trips the breaker.

Similarly, dirty condenser coils in your outdoor unit act like an insulating blanket. If the coils are covered in grass clippings or dirt, the heat stays trapped inside the system. This forces the compressor to run at higher temperatures and pressures, eventually leading to a trip.

For a deeper dive into how maintenance impacts performance, check out our AC Repair Guide Waukesha WI.

Electrical Component Failures and Wiring Issues

Beyond the compressor, several smaller electrical parts can cause big headaches.

1. The Capacitor: Think of the capacitor as a giant battery that gives your motors the "jolt" they need to start spinning. If the capacitor is failing, the motor will struggle to start, drawing massive "Locked Rotor Amps" that trip the breaker. You might hear a buzzing or clicking sound before the system shuts down.
2. Fan Motor Burnout: If the outdoor fan motor fails, the refrigerant won't cool down. The resulting heat buildup sends the compressor into overdrive, tripping the breaker to prevent a total meltdown.
3. Loose Wiring: Over time, the vibrations of the AC unit can loosen wire connections. Loose wires create "arcing," where electricity jumps across gaps. This generates extreme heat and is a major fire risk.
4. Oversized or Undersized Units: If an AC unit is too large for the home, it "short cycles," turning on and off constantly. This puts immense strain on the breaker. Conversely, an undersized breaker (e.g., a 15-amp breaker on a 20-amp unit) will never hold the load.

If you are dealing with these complex electrical issues in Brookfield or Sussex, we can help you Resolve Frequent AC Circuit Breaker Trips by testing these components with professional diagnostic tools.

Safe Troubleshooting Steps for Homeowners

While we always recommend a professional for electrical work, there are a few things you can safely check at your home in New Berlin or Pewaukee before calling us.

• Check the Air Filter: This is the #1 cause of DIY-fixable trips. If it looks gray or furry, replace it immediately.
• Clear the Outdoor Unit: Ensure there are at least two feet of clear space around your outdoor condenser. Remove tall grass, leaves, and debris that might be "suffocating" the unit.
• The "One-Time" Reset: If your breaker trips, turn the AC off at the thermostat first. Go to your electrical panel and flip the breaker fully to the OFF position, then back to ON. Wait 30 minutes to let the internal components cool down before turning the thermostat back to COOL.
• Visual Inspection: Look for any obvious signs of trouble, like a burning smell near the indoor air handler or ice forming on the copper refrigerant lines. If you see ice or smell smoke, turn the system off and keep it off!

For more tips on keeping your system running smoothly, visit our AC Repair Guide Waukesha WI.

Frequently Asked Questions

Is it safe to keep resetting my AC breaker?

No, it is not. A circuit breaker is a safety device, not a light switch. If it trips more than once, it is telling you that there is a dangerous electrical or mechanical fault. Repeatedly resetting the breaker can cause the wire insulation to degrade, eventually leading to a fire or permanent damage to your expensive compressor.

Why does my AC trip the breaker only on the hottest days?

On extreme heat days, your AC has to work much harder and run for longer cycles. If your condenser coils are even slightly dirty, the system may struggle to shed heat. The combination of high outdoor temperatures and extended run times pushes the electrical draw to its limit, causing a trip. Regular maintenance is the best way to prevent this "peak heat" failure.

Can a refrigerant leak cause a breaker to trip?

Yes, indirectly. When refrigerant levels are low, the compressor has to work much harder to move the remaining "coolant" through the system. This extra mechanical strain increases the amperage draw. Furthermore, low refrigerant can cause the evaporator coils to freeze, which restricts airflow and forces the blower motor to overwork, eventually tripping the breaker.

Conclusion

Understanding ac circuit breaker keeps tripping what it means is the key to protecting your home and your wallet. Whether it's a simple clogged filter or a complex grounded compressor, a tripping breaker is a cry for help from your HVAC system.

At On Time Heating & Cooling, we pride ourselves on being the punctual, reliable experts for Menomonee Falls and the surrounding Southeast Wisconsin communities. Our factory-trained technicians are ready to diagnose your electrical issues and get your home back to a comfortable temperature.

Don't let a tripping breaker leave you in the heat. Join our "On The Dot Club" for annual maintenance that catches these issues before they start, or contact us today for a free second opinion on any major repair. We are here to ensure your AC stays on when you need it most.
